Setup of a special material and emission situation

Post by lighting_freak » Thu Oct 08, 2020 1:27 pm

Hello all,

I'd like to create a special material combination.
It is a special red acrylic that allows also a special yellow light to come through it and still looking yellow.

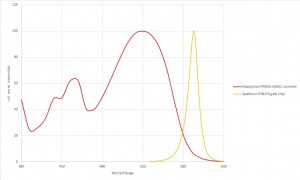

The following image shows the absorption of the red acrylic and the spectrum of the light source.
Is it possibel to model this situation in luxcorerender?
Thank you.

BR.
OS - Windows 7 X64
CPU - Intel CORE i7
GPU1 - Variants of notebook card from nVidia
GPU2 - Variants of notebook onboard card from Intel
Lux - Latest possible relaease

User avatar
MetinSeven
Posts: 120
Joined: Sun Aug 18, 2019 10:19 am
Location: Netherlands
Contact:

Re: Setup of a special material and emission situation

Post by MetinSeven » Mon Oct 19, 2020 5:31 am

Specialized materials like this could probably benefit from a spectral workflow. I hope the LuxcoreRender devs put it back on their list.
visualizer • illustrator • animator • 3D designer — metinseven.nl

CodeHD
Posts: 396
Joined: Tue Dec 11, 2018 12:38 pm
Location: Germany

Re: Setup of a special material and emission situation

Post by CodeHD » Mon Oct 19, 2020 7:29 am

I don't think it is possible now. In RGB space, the yellow light must be composed of similar parts R and G, while a red-looking filter must filter out almost all G... hence ending up with a red light after transmission.

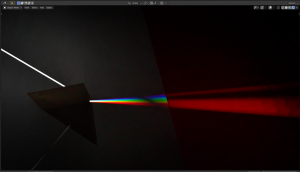

There was a nice example on discord recently where someone passed the dispered spectrum from a prism through a red filter, leading to pruple becoming red.
Attachments
