Wireframe texture

Post by Dade » Sat Aug 08, 2020 12:34 pm

I'm playing with some idea for Bevel shader (aka Rounded edge shader). As side product of the work I have added the support for a wire frame texture:

Code: Select all

scene.textures.wireframetex.type = wireframe
scene.textures.wireframetex.width = 0.01
scene.textures.wireframetex.border = 1.0 1.0 1.0
scene.textures.wireframetex.inside = 0.0 0.0 0.0

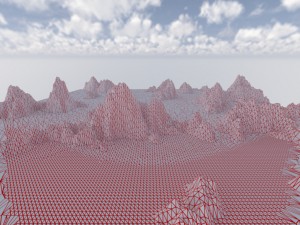

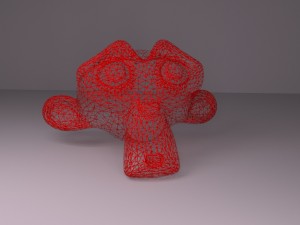

It looks pretty nice:
